Pure Teflon gasket

Service temperature: - 150-250 ℃ service pressure: 6.4Mpa

[main use] static sealing of high-definition cleanliness medium

[Specification] dn15-dn500 Teflon gasket is composed of asbestos rubber plate or non asbestos plate and Teflon coated sheet. V-type (sectioning type) Teflon gasket is machined from Teflon plate, and U-type (folding type) Teflon gasket is formed by heating and bonding after wrapping. It has excellent corrosion resistance and good compression resilience, and is widely used in sealing of various strong acids, alkali, oxidation, chlorine and non polluting media.

Generally, it is applicable to medium and low pressure parts.

Main technical parameters: pressure ≤ 4.0Mpa temperature ≤ 260 ℃ gasket coefficient: M = 2.5 pH value: 0-14 minimum preload specific pressure: y = 20MPa

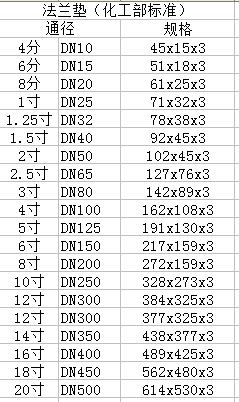

Flange gasket standard size

Non standard customization
